Graph

• Great to represent networks. E.g., roads, relationships
• Trees and Linked Lists are also graphs

Elements

• Node (Vertex)
• Edge: connects nodes

Types

• Direction
• Directed: edges have a direction. E.g., A follows B
• Undirected: edges have no direction. E.g., A is friends with B
• Weight
• Weighted: edges have a weight
• Unweighted: edges have no weight
• Cycle
• Cyclic: starting from a node it's possible to reach itself back again

• Acyclic: no way for a node to reach itself again

• E.g., Directed Acyclic Graph (DAG)

Representation

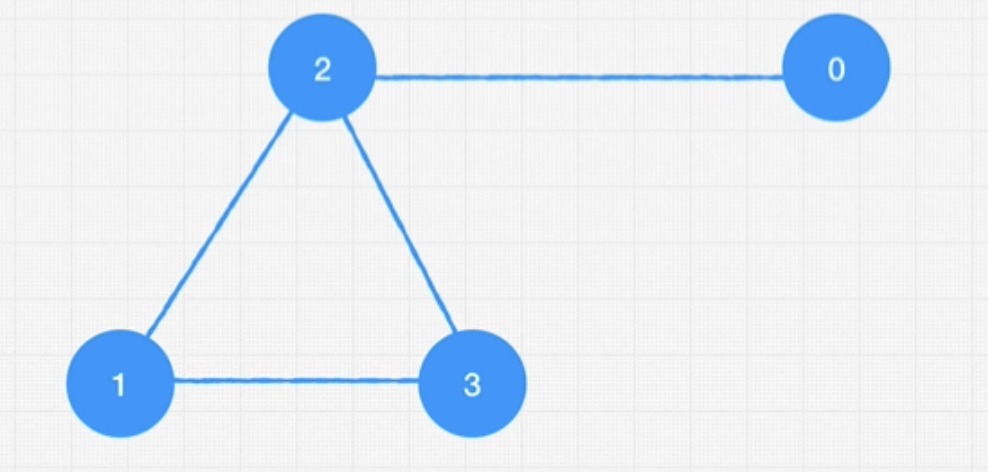

Edge List

• A list containing each edge connection (order is not important)

graph = [
    [0, 2], # connects node 0 with node 2 (forming an edge)
    [2, 3],
    [2, 1],
    [1, 3],
]

graph = [
    ['A','C'], # connects node A with node C (forming an edge)
    ['C','D'],
    ['C','B'],
    ['B','D']
]

Adjacent List

• A list containing each node in order. Each node itself is a list containing all its connections (with other nodes)

# as a list
graph = [
    ["C"],
    ["C", "D"],
    ["A", "B", "D"],
    ["B", "C"],
]

# as a map
graph = {
    "A": ["C"],
    "B": ["C", "D"],
    "C": ["A", "B", "D"],
    "D": ["B", "C"],
}

# as a map (weighted)
graph = {
    "A": {"C": 2},
    "B": {"C": 2, "D": 4},
    "C": {"A": 1, "B": 1, "D": 2},
    "D": {"B": 7, "C": 5},
}

Adjacent Matrix

• A list containing each node in order. Each node itself is a list containing if it's connected (0 or 1) with each of the other nodes. It can also contain weights (scalar) and directions (sign)

# as a list
graph = [
    [0, 0, 1, 0],
    [0, 0, 1, 1],
    [1, 1, 0, 1],
    [0, 1, 1, 0],
]

# as a map
graph = {
    0: [0, 0, 1, 0],
    1: [0, 0, 1, 1],
    2: [1, 1, 0, 1],
    3: [0, 1, 1, 0],
}
