AWS::RDS::DBInstance

  • Managed underlying OS, updates, etc
  • Continuous backups. Easily restore
  • Monitoring dashboards
  • Read replicas
  • Multi-AZ for disaster recovery
  • Maintenance windows for upgrades
  • Scaling capability (vertical and horizontal)
  • Storage backed by EBS (gp2 or io1)

Properties

Type: AWS::RDS::DBInstance
Properties:
  AllocatedStorage: String
  AllowMajorVersionUpgrade: Boolean
  AssociatedRoles:
    - DBInstanceRole
  AutomaticBackupReplicationKmsKeyId: String
  AutomaticBackupReplicationRegion: String
  AutoMinorVersionUpgrade: Boolean
  AvailabilityZone: String
  BackupRetentionPeriod: Integer
  CACertificateIdentifier: String
  CertificateDetails:
    CertificateDetails
  CertificateRotationRestart: Boolean
  CharacterSetName: String
  CopyTagsToSnapshot: Boolean
  CustomIAMInstanceProfile: String
  DBClusterIdentifier: String
  DBClusterSnapshotIdentifier: String
  DBInstanceClass: String
  DBInstanceIdentifier: String
  DBName: String
  DBParameterGroupName: String
  DBSecurityGroups:
    - String
  DBSnapshotIdentifier: String
  DBSubnetGroupName: String
  DBSystemId: String
  DedicatedLogVolume: Boolean
  DeleteAutomatedBackups: Boolean
  DeletionProtection: Boolean
  Domain: String
  DomainAuthSecretArn: String
  DomainDnsIps:
    - String
  DomainFqdn: String
  DomainIAMRoleName: String
  DomainOu: String
  EnableCloudwatchLogsExports:
    - String
  EnableIAMDatabaseAuthentication: Boolean
  EnablePerformanceInsights: Boolean
  Endpoint:
    Endpoint
  Engine: String
  EngineLifecycleSupport: String
  EngineVersion: String
  Iops: Integer
  KmsKeyId: String
  LicenseModel: String
  ManageMasterUserPassword: Boolean
  MasterUsername: String
  MasterUserPassword: String
  MasterUserSecret:
    MasterUserSecret
  MaxAllocatedStorage: Integer
  MonitoringInterval: Integer
  MonitoringRoleArn: String
  MultiAZ: Boolean
  NcharCharacterSetName: String
  NetworkType: String
  OptionGroupName: String
  PerformanceInsightsKMSKeyId: String
  PerformanceInsightsRetentionPeriod: Integer
  Port: String
  PreferredBackupWindow: String
  PreferredMaintenanceWindow: String
  ProcessorFeatures:
    - ProcessorFeature
  PromotionTier: Integer
  PubliclyAccessible: Boolean
  ReplicaMode: String
  RestoreTime: String
  SourceDBClusterIdentifier: String
  SourceDBInstanceAutomatedBackupsArn: String
  SourceDBInstanceIdentifier: String
  SourceDbiResourceId: String
  SourceRegion: String
  StorageEncrypted: Boolean
  StorageThroughput: Integer
  StorageType: String
  Tags:
    - Tag
  Timezone: String
  UseDefaultProcessorFeatures: Boolean
  UseLatestRestorableTime: Boolean
  VPCSecurityGroups:
    - String

BackupRetentionPeriod

  • Daily full backup of the database (during the maintenance window)
  • 7 days retention by default (can be increased to up to 35 days)
  • Transation logs are backed-up every 5min
  • Ability to restore to any point in time! (from the oldest backup to 5 minutes ago)

EnableIAMDatabaseAuthentication

  • IAM policies control who can manage RDS
  • For authentication user+pass or iam-auth can be used
  • IAM authentication can be used for mysql or postgres only (with a 15min token)

RDS Authentication

Engine

  • Postgres
  • MySQL
  • MariaDB
  • Oracle
  • Microsoft SQL Server

  • Aurora (AWS proprietary db)

  • Aurora

  • Proprietary database technology (AWS-owned)
  • Compatible with Postgres and MySQL drivers
  • Cloud optimized (5x performance over MySQL)
  • Shared Storage Volume that grows automatically up to 128TB (at 10GB steps)
  • 20% more expensive

DBInstanceClass

  • Standard
  • Memory Optimized
  • Burstable

DBSnapshotIdentifier

  • Snapshots are manually triggered by the user
  • The retention is for as long as you want
  • Restoring a snapshot is much quicker than creating a db and inserting everything you need

MaxAllocatedStorage

  • Autoscaling automatically increase the maximum size based on a threshold (e.g., free storage is less than 10% of total)
  • Maximmum Storage Threshold must also be set to prevent scaling infinitely

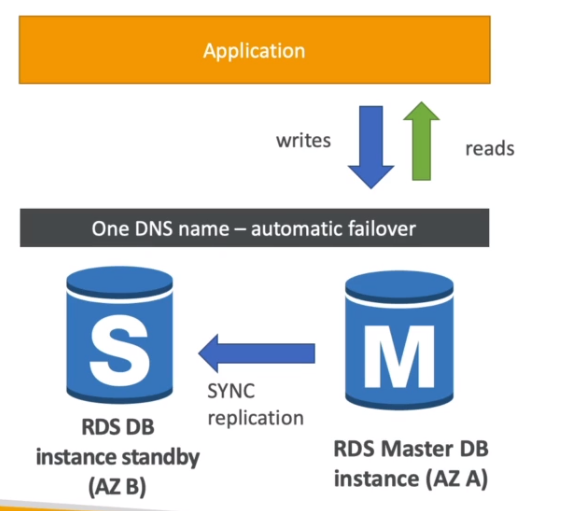

MultiAZ

  • For Disaster Recovery
  • Sync operation
  • The data is synced to a standby replica
  • This standby replica will be automatically used in case of failure of the main database (failover). Increased availability
  • The standby db is not used for scaling
  • A read replica can also be used as a failover!

Disaster Recovery Disaster Recovery Detail

SourceDBInstanceIdentifier

  • Read Replicas

  • Async operation. Therefore is data is eventually consistent

  • Up to 5 read replicas
  • Within an AZ, Cross-AZ or Cross-Region

Read Replicas

  • A replica can be promoted to be the main database

  • Only attach applications to the main instance if really necessary!

  • The application must update the connection string to include the read replicas
  • There is a network cost over the data replication across AZs in different regions. Within the same region the replication is free

Data Replication

StorageEncrypted

  • At rest encryption
  • Master & read replicas (AWS KMS - AES-256)

  • If master is not encrypted, read replicas cannot be encrypted

  • In-flight encryption

  • SSL certificates to encrypt data in transit
  • A trust certificate must be set up in order to connect to the db

  • To enforce SSL

    • Postgres: rds.force_ssl=1 in AWS RDS console
    • MySQL: GRANT USAGE ON *.* TO 'mysqluser'@'%' REQUIRE SSL

  • To encrypt an unencrypted RDS database:

  • Create a unencrypted snapshot
  • Copy the snapshot and enable encryption
  • Restore the db from the encrypted snapshot
  • Migrate applications to the new db
