AWS::CloudFront::Distribution

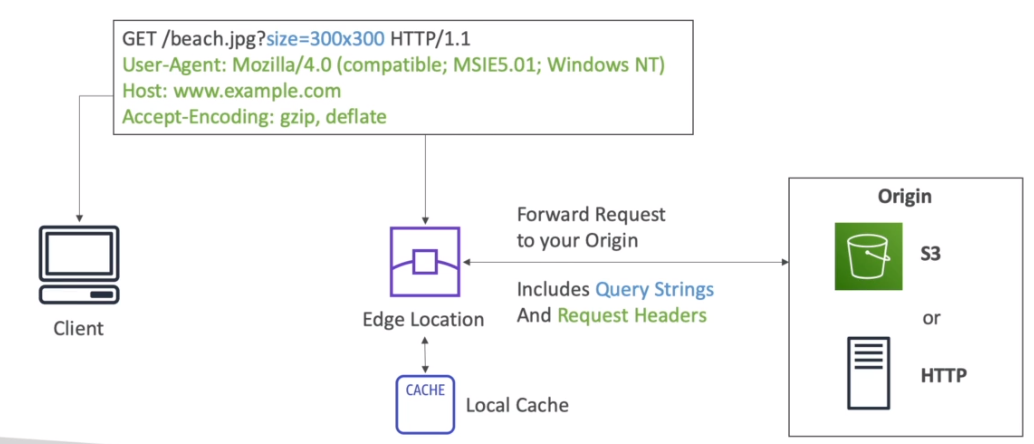

  • It's a Content Delivery Network (CDN)
  • Cache responses at the edges (216 Points of Presence (PoP) around the world)
  • Use case: static content with a TTL. Bad for dynamic content!

CloudFront

  • Integration with Shield (DDoS protection)
  • AWS Web Application Firewall

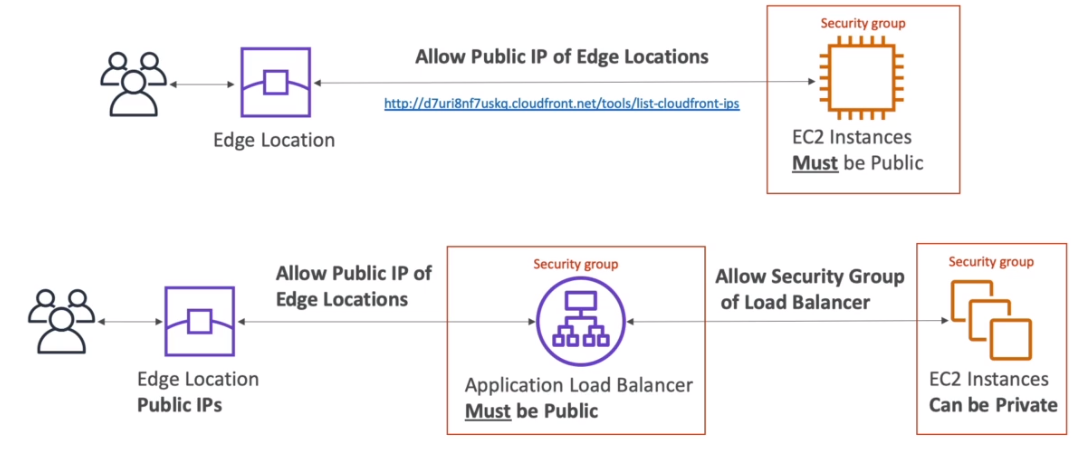

CloudFront Permissions

  • Regional edge cache bypass
  • Proxy methods PUT/POST/PATCH/OPTIONS/DELETE
  • Dynamic content (cache-behavior configured to forward all headers)

Properties

Type: AWS::CloudFront::Distribution
Properties:
  DistributionConfig:
    DistributionConfig
  Tags:
    - Tag

DistributionConfig

Aliases:
  - String
CacheBehaviors:
  - CacheBehavior
CNAMEs:
  - String
Comment: String
ContinuousDeploymentPolicyId: String
CustomErrorResponses:
  - CustomErrorResponse
CustomOrigin:
  LegacyCustomOrigin
DefaultCacheBehavior:
  DefaultCacheBehavior
DefaultRootObject: String
Enabled: Boolean
HttpVersion: String
IPV6Enabled: Boolean
Logging:
  Logging
OriginGroups:
  OriginGroups
Origins:
  - Origin
PriceClass: String
Restrictions:
  Restrictions
S3Origin:
  LegacyS3Origin
Staging: Boolean
ViewerCertificate:
  ViewerCertificate
WebACLId: String

CacheBehaviors

  • LambdaFunctionAssociations

  • Deploy lambda alongside with CloudFront CDN

  • Change request and response contents
  • Viewer Request
  • Origin Request
  • Origin Response
  • Viewer Response
  • Example: authenticate users at the CloudFront Edge Locations instead of authentication requests go all the way to your origins.

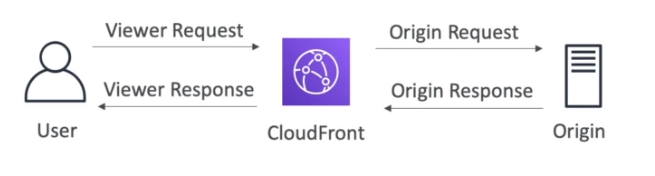

Request Response Change

  • Use Cases
  • Website Security & Privacy
  • Dynamic Web Application at the Edge
  • Search Engine Optimization (SEO)
  • Intelligently Route Across Origins and Data Centers
  • Bot Mitigation at the Edge
  • Real-time Image Transformation
  • A/B Testing
  • User Authentication and Authorization
  • User Prioritization
  • User Tracking and Analytics

Origins

  • Custom HTTP: ELB, EC2, S3 website, ...
  • S3 bucket: s3 bucket!

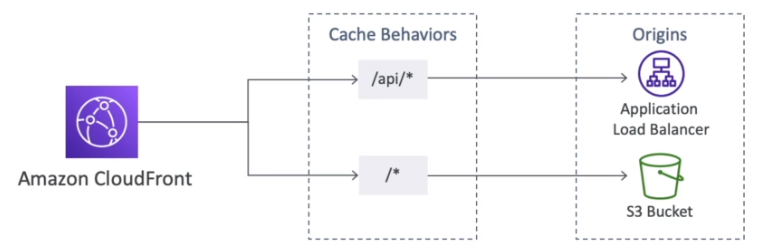

  • Multiple Origins: Path pattern: /images/*, /api/*, ... Multiple Origins

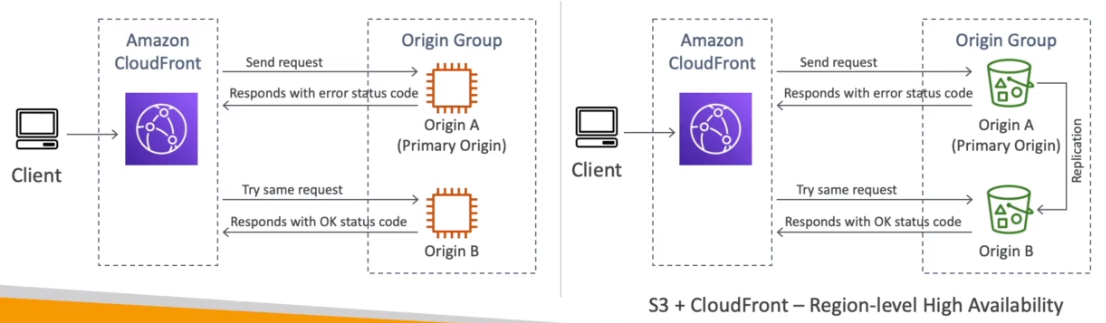

  • Origin groups: One primary + one secondary origins to failover Origin Groups

PriceClass

  • Cost of data per edge location varies
  • Price Classes
  • All: all regions, best performance
  • 200: 200 cheaper regions
  • 100: 100 cheaper regions

Restrictions

  • Geo Restriction restricts which locations can access your server
  • Whitelist or Blacklist
  • Country is determined by the IP address

S3Origin

  • Support for Origin Access Identity (OAI): The S3 is accessed by a new IAM identity and this identity is added to the bucket policy
  • You can then update S3 Bucket Policy to only accept requests from OAI user
{
  "Version": "2012-10-17",
  "Id": "Mystery policy",
  "Statement": [
    {
      "Sid": "MyPolicy",
      "Effect": "Allow",
      "Principal": {
        "CanonicalUser": "CloudFront Origin Identity Canonical User ID"
      },
      "Action": "s3:GetObject",
      "Resource": "arn:aws:s3:::examplebucket/*"
    }
  ]
}
  • The default root object is the object to retrieve on / (usually index.html)
