AWS::EC2::VPC

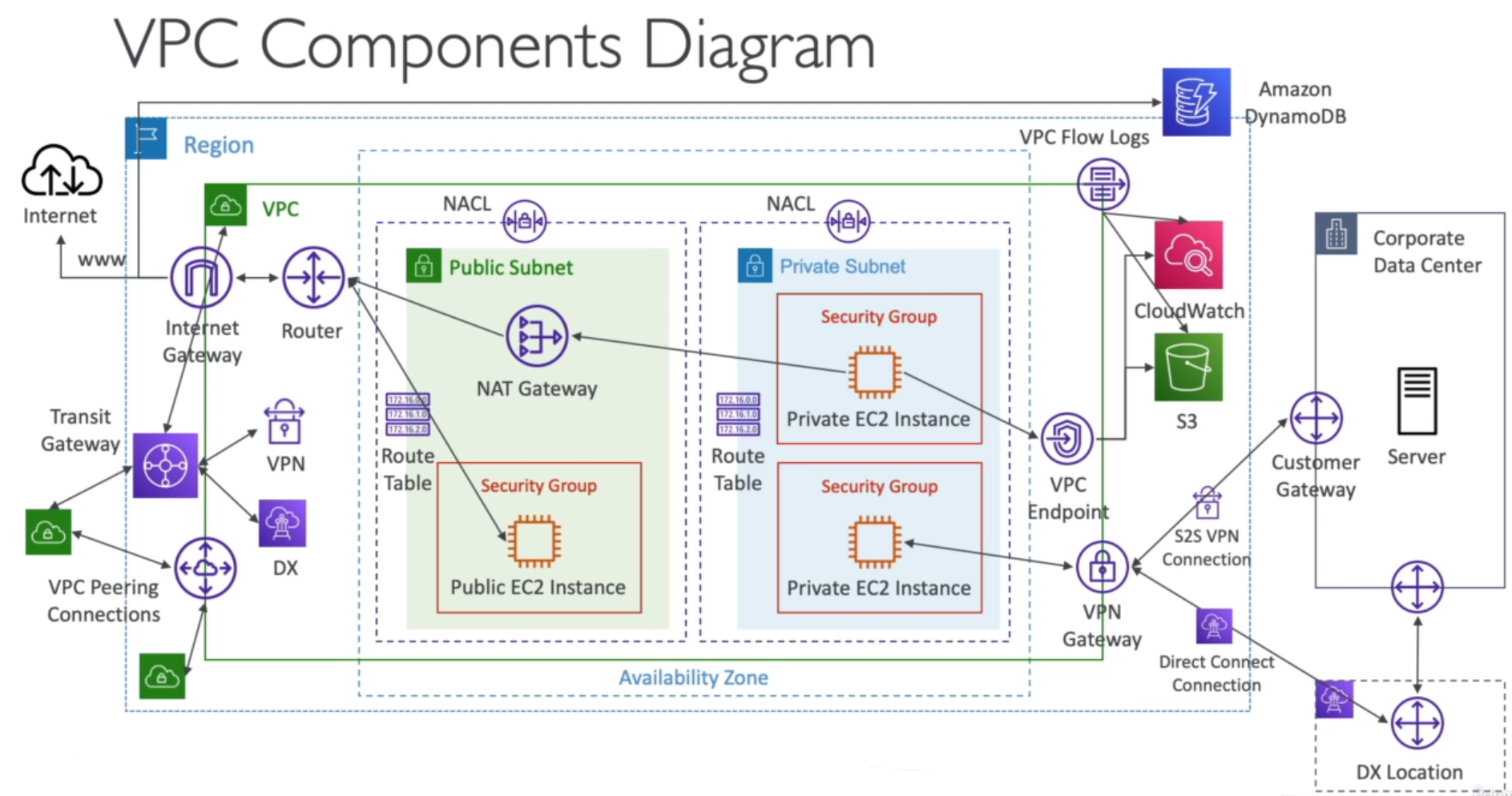

VPC

  • Specifies a VPC with the specified IPv4 CIDR block
  • Default VPC is automatically created to deploy services if no VPC is specified
  • Each region can have up to 5 VPCs (soft limit)
  • A Bastion Host is used to SSH into private instances. It sits in a public subnet. Ideally it must only allow certain IP ranges to access it

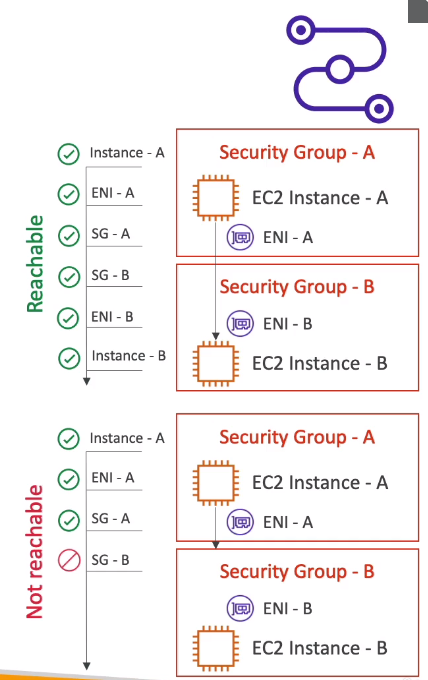

  • Reachability Analyzer
  • Troubleshoot connectivity between 2 endpoints in VPC
  • Define a src and dst and a port to analyze
  • Just analyze the configuration. Do not send any packet

Reachability Analyzer

Properties

Type: AWS::EC2::VPC
Properties:
  CidrBlock: String
  EnableDnsHostnames: Boolean
  EnableDnsSupport: Boolean
  InstanceTenancy: String
  Ipv4IpamPoolId: String
  Ipv4NetmaskLength: Integer
  Tags:
    - Tag

CidrBlock

  • Classless Inter-Domain Routing (CIDR): Base IP + Subnet Mask (/8, /16, /24, ...)

  • Each VPC can have up to 5 CIDR ranges

  • Minimum /28 (16 addresses)
  • Maximum /16 (65536 addresses)

  • The CIDR should not overlap CIDR from other VPCs

  • IP ranges

  • IANA: define IPv4 that will be used for private networking (LAN)
  • 10.0.0.0/8: big networks
  • 172.16.0.0/12: default aws (16-31)
  • 192.168.0.0/16: home networks

EnableDnsHostnames

  • Defaults to true for the default VPC, false for new VPCs
  • If true, automatically assign hostname for EC2 instances (if it has a public IP)
  • With these settings, private dns zone can be set up in Route53

EnableDnsSupport

  • Enables DNS resolution. Defaults to true
  • If true AWS DNS server will be queried (169.254.169.253)
