AWS::EC2::VPCEndpoint

• Specifies a VPC endpoint (a gateway) to access aws services internally
• An endpoint enables you to create a private connection between your VPC and the service
• An entry is automatically added to the route table of the corresponding subnet

Properties

• https://docs.aws.amazon.com/AWSCloudFormation/latest/UserGuide/aws-resource-ec2-vpcendpoint.html

Type: AWS::EC2::VPCEndpoint
Properties:
  PolicyDocument: Json
  PrivateDnsEnabled: Boolean
  RouteTableIds:
    - String
  SecurityGroupIds:
    - String
  ServiceName: String
  SubnetIds:
    - String
  VpcEndpointType: String
  VpcId: String

VpcEndpointType

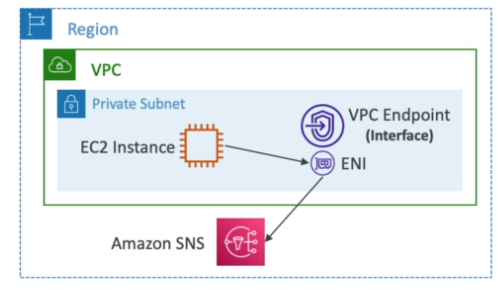

• Interface: provisions an ENI (private ip) as entry point to the AWS service

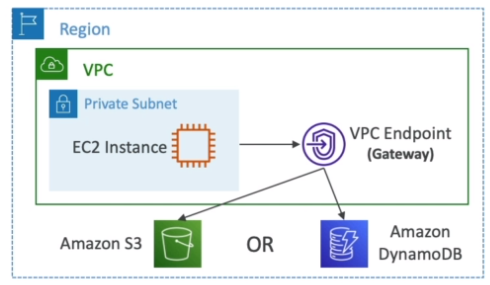

• Gateway: Only for S3 and DynamoDB
