AWS::S3::Bucket

  • Store objects (files) in buckets (directories)
  • Buckets have a globally unique name
  • All operations are strong consistent: after write/delete in an object (PUT/DELETE), a subsequent read (GET) will have the latest version of the object
  • By default, S3 objects are owned by the AWS account that uploaded it

Objects

  • key: the unique identification for the object is its full path. E.g., s3://my-bucket/my-folder/my-file.txt
  • size: Max object size is 5TB (but upload must happen with 5GB chunks)
  • metadata: list of key-value pairs
  • tags: up to 10
  • version: version id

MFA Delete

  • Multiple confirmations required for deleting
  • To permanently delete a version, to suspend the versioning, etc
  • Only root account can enable/disable this option through the CLI
# enable MFA delete (must be root account)
aws s3api put-bucket-versioning \
  --bucket "my-bucket" \
  --versioning-configuration "Status=Enabled,MFADelete=Enabled"

Requester Pays

  • Charger the 3rd party who is willing to request data to your bucket for the network costs only
  • The owner will pays for the storage costs
  • requester must be authenticated in AWS

Requester Pays

Pre-signed URL

  • Pre-Signed URL: URLs valid for a limited time (3600s by default)
  • For downloads, CLI can be used

  • For uploads, SDK can be used

  • Access multiple operations GET, PUT, POST, ...

# generate pre-signed URL for an object
aws s3 presign "s3://mybucket/myobject.txt" --region "sa-east-1"
aws s3 presign "s3://mybucket/myobject.txt" --region "sa-east-1" --expires-in "300" # 3600 by default
  ```

## Performance

- `3500` PUT/COPY/POST/DELETE per second per prefix
- `5000` GET/HEAD per second per prefix

- `KMS` limits the performance because KMS has a per-request quota
  ![S3 KMS Quota](.images/s3-kms-quota.png)

- `Multi-part upload`
  - It is recommended for files > 100MB and required for files > 5GB
  - It parallelize the upload and achieve higher throughput

- `S3 Byte-Range Fetches`
  - Optimizes READ
  - Parallelize GET requests
  - Can also be used to retrieve only a part of the file (e.g., only the header)

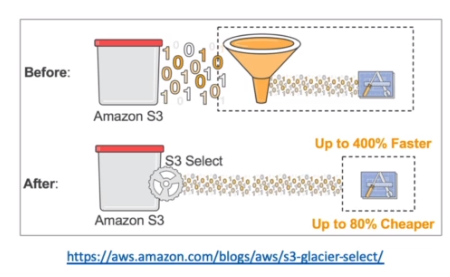

- `S3 Select & Glacier Select`
  - Allow queries to the S3 using `SQL language` (server-side filtering)
  - Avoid unnecessary data filtering by the application
  - Can also search in a csv file
  - Less network traffic!
    ![S3 Select](.images/s3-select.png)

## Properties

- <https://docs.aws.amazon.com/AWSCloudFormation/latest/UserGuide/aws-resource-s3-bucket.html>

```yaml
Type: AWS::S3::Bucket
Properties:
  AccelerateConfiguration:
    AccelerateConfiguration
  AccessControl: String
  AnalyticsConfigurations:
    - AnalyticsConfiguration
  BucketEncryption:
    BucketEncryption
  BucketName: String
  CorsConfiguration:
    CorsConfiguration
  IntelligentTieringConfigurations:
    - IntelligentTieringConfiguration
  InventoryConfigurations:
    - InventoryConfiguration
  LifecycleConfiguration:
    LifecycleConfiguration
  LoggingConfiguration:
    LoggingConfiguration
  MetricsConfigurations:
    - MetricsConfiguration
  NotificationConfiguration:
    NotificationConfiguration
  ObjectLockConfiguration:
    ObjectLockConfiguration
  ObjectLockEnabled: Boolean
  OwnershipControls:
    OwnershipControls
  PublicAccessBlockConfiguration:
    PublicAccessBlockConfiguration
  ReplicationConfiguration:
    ReplicationConfiguration
  Tags:
    - Tag
  VersioningConfiguration:
    VersioningConfiguration
  WebsiteConfiguration:
    WebsiteConfiguration

AccelerateConfiguration

  • S3 Transfer Acceleration (S3TA)
  • Increase transfer speed
  • Transfer to AWS edge location and forwards to target region Transfer Acceleration
  • With S3TA, you pay only for transfers that are accelerated

BucketEncryption

  • SSE-S3
  • Keys managed by AWS
  • SSE: server side encryption
  • Header "x-amz-server-side-encryption":"AES256"
  • SSE-KMS
  • Encryption and keys managed by KMS (key management service)
  • User control, audit trail support, rotation policy of the key
  • Header "x-amz-server-side-encryption":"aws:kms"
  • SSE-C
  • You manage your own keys
  • Through CLI or SDK only (not console)
  • HTTPS is mandatory because you have to pass the key to aws
  • Key must be provided in the header in every request
  • AWS just use the key to encrypt and discard it
  • Header "x-amz-server-side-encryption":"aws:c"
  • Client Side Encryption
  • You encrypt the data and send it

  • S3 encryption SDK can help with that

  • A default encryption method can be set for all files. Also, different methods can override the default encryption for each single file and version

CorsConfiguration

  • CORS (Cross-Origin Resource Sharing): get resource from another origin
  • Web Browser Policy: allow requests to other origins only if this origin being requested allows CORS

  • Origin: scheme (protocol) + host (domain) + port. E.g., https://www.example.com:443

  • Same origin: http://example.com/app1 & http://example.com/app2

  • Different origins: http://example.com/ & http://other.example.com/

  • Preflight Request

  • The browser will perform a preflight request to the target origin in order to check if it allows CORS.

  • It's a OPTIONS request with Host (target origin) and Origin (source origin)

  • The target origin responds with the allowed methods

    • Access-Control-Allow-Origin: http://www.source-origin.com
    • Access-Control-Allow-Methods: GET, PUT, DELETE

  • S3 CORS

  • CORS must be enabled for the bucket in order to allow requests from other origins

  • CORS is enabled and defined under permissions config in the bucket
[
  {
    "AllowedHeaders": ["Authorization"],
    "AllowedMethods": ["GET"],
    "AllowedOrigins": ["http://source-bucket.com"],
    "ExposeHeaders": [],
    "MaxAgeSeconds": 3000
  }
]
  • This responds with the following headers:
  • Access-Control-Allow-Origin: http://source-bucket.com/
  • Access-Control-Allow-Methods: GET

S3 CORS

<html>
  <head>
    <title>My First Webpage</title>
  </head>
  <body>
    <h1>I love coffee</h1>
    <p>Hello world!</p>
  </body>
  <img src="coffee.jpg" width="500" />

  <!-- CORS demo -->
  <div id="tofetch" />
  <script>
    var tofetch = document.getElementById("tofetch");

    // load from URL in the same origin
    fetch("extra-page.html")
      .then((response) => {
        return response.text();
      })
      .then((html) => {
        tofetch.innerHTML = html;
      });

    // load from URL in different origin (CORS in the target origin must be enabled)
    fetch(
      "http://target-bucket.s3-website-eu-west-1.amazonaws.com/extra-page.html"
    )
      .then((response) => {
        return response.text();
      })
      .then((html) => {
        tofetch.innerHTML = html;
      });
  </script>
</html>

LifecycleConfiguration

  • StorageClass
  • Standard - General Purpose
    • Durability 99.999999999%
    • Availability 99,99%
    • Use cases: big data analytics, mobile&gaming apps, content distribution
  • Standard - Infrequent Access (IA)
    • Infrequent access, but rapid access when needed
    • Availability 99,9%
    • Use cases: backups
  • Intelligent Tiering
    • Small monthly fee for monitoring and auto-tiering
    • Automatically move objects between tiers. E.g. GA -> IA
    • Availability 99,9%
  • One Zone - Infrequent Access (IA)
    • Same as Standard IA but in a single AZ
    • Availability 99,5%
    • Use cases: secondary backup
  • Glacier
    • $0.004/GB + retrieval cost
    • Each archive has up to 40 TB
    • Archive are stored in vaults
    • Retrieval options: expedited (1-5min), standard (3-5h), bulk (5-12h)
    • Minimum storage duration of 90 days
  • Glacier Deep Archive
    • Even cheaper!
    • Retrieval options: standard (12h), bulk (48h)
    • Minimum storage duration of 180 days

Storage Classes

Storage Classes Costs

  • The storage class of an object can be set for each file (upon uploading or afterwards)

  • Lifecycle Rules

  • Lifecycle rules can be created under Management Tab

  • S3 Analytics can be setup to automatically transition objects. Only Standard to Standard-IA

  • Transition actions: E.g., move to Standard IA 60 days after creation and to glacier 6 months after

    • Transition current versions of objects between storage classes
    • Transition previous versions of objects between storage classes
    • Expire current versions of objects
    • Permanently delete previous versions of objects
    • Delete expired delete markers or incomplete multipart uploads

Lifecycle Rules

LoggingConfiguration

  • Access Logs can be stored in another s3 bucket. Do not store it in the same bucket otherwise it will loop forever
  • API calls can be logged in cloudtrail
  • Can be activated under Server Logging Access in properties tab

NotificationConfiguration

  • S3 Event Notifications
  • S3:ObjectCreated, S3:ObjectRemoved, ...
  • Events notification is defined under properties tab
  • Rules can be applied to monitor only certain objects

  • Example of event notification use: generate thumbnail as soon as a jpg file is created in the bucket

  • Events can be sent to SNS, SQS or Lambda Functions in order for the event to be further processed

  • The target broker (SNS, SQS, etc) must have access policies to allow s3 to publish in it

ObjectLockConfiguration

  • Places an Object Lock configuration on the specified bucket.
  • The default retention can also be override when you explicitly apply a retention period to an object version (Retain Until Date)

  • Different versions of an object can have different retention modes and periods

  • The rule specified in the Object Lock configuration will be applied by default to every new object placed in the specified bucket

  • The DefaultRetention specifies:

  • Mode

    • GOVERNANCE: users can't modify or delete versions
    • COMPLIANCE: versions can't be overwritten (even by root)

  • Period

    • Retention Period
    • Legal Hold (no expiry date)

  • For archives you can add Vault Lock and adopt WORM (write once read many)

  • This way your archive cannot be modified/deleted. Good for compliance & audit!

PublicAccessBlockConfiguration

  • Configuration to block public access to objects
  • This is used to prevent data leaks
  • This configuration can also be applied at the account level (for all buckets)

ReplicationConfiguration

  • CRR: Cross Region Replication

  • SRR: Same Region Replication

  • Copy is asynchronous

  • Versioning must be enabled in order to replicate
  • S3 must have proper IAM permissions
  • Use cases: compliance, lower latency
  • After activating, only new objects are replicated

  • Replication cannot be chained! Replica from 1 to 2 won't replicate from 2 to 3

  • Replication rule

  • It's configured under replication rules in Management Tab
  • Replication can be activated for all objects or specific objects with filter
  • For DELETE operations, you can choose whether the delete markers will be replicated

VersioningConfiguration

  • Once you version-enable a bucket, it can never return to an unversioned state
  • Versioning can only be suspended once it has been enabled. Suspending the versioning won't remove the versions already created
  • With versioning, you can easily recover from both unintended user actions and application failures
  • When overriding a file, a new version is created
  • Objects with version id null means they were created when versioning was not activated
  • Deleted objects receive a delete marker. And the previous versions of it are preserved. To delete an object completely, all the versions must be deleted

WebsiteConfiguration

  • S3 can host static websites and have them accessible on the www
  • Under bucket properties, static website hosting must be activated
  • block public access must be disabled
  • A bucket policy must enable access to its files
{
  "Id": "Policy1633026957759",
  "Version": "2012-10-17",
  "Statement": [
    {
      "Sid": "Stmt1633026955731",
      "Action": ["s3:GetObject"],
      "Effect": "Allow",
      "Resource": "arn:aws:s3:::hvitoi/*",
      "Principal": "*"
    }
  ]
}

<html>
  <head>
    <title>My First Webpage</title>
  </head>
  <body>
    <h1>I love coffee</h1>
    <p>Hello world!</p>
  </body>
  <img src="coffee.jpg" width="500" />
</html>
