Virtual network

  • VNet enables many types of Azure resources, such as Azure Virtual Machines (VM), to securely communicate with each other, the internet, and on-premises networks.
  • VNet can be configured to integrate a web app under Networking tab
  • Example: Connect a Web App (10.0.0.0 subnet) and a Database (10.0.1.0 subnet) through the same VNet
  • This way the Web app can connect to the database with private IP address
  • A VNet needs a subnet or collection of subnets
  • A VNet is scoped to a single region

Address Space

  • The Address Space defines the possible values for subnets

  • Classless Inter-Domain Routing (CIDR) E.g., 10.1.0.0/24

  • Network prefix length: 24
  • Means that the first 24 bits (out of 32) is the Network ID (10.1.0.0)
  • Then the last 8 bits (out of 32) are the Hostnames and can be used to assign IP addresses (10.1.0.0)
  • New address spaces can be additionally added. E.g., 20.0.0.0/16
  • Addresses with prefix length 32 means the ip is unique and fixed 10.0.0.0/32

Subnets

  • It's a split of the address space into multiple subnets. A logical organization
  • E.g., Address Space 10.1.0.0/16 can have subnets:
  • 10.1.1.0/24
  • 10.1.2.0/24
  • 10.1.3.0/24
  • ...
  • Subnet addresses can be modified only if no VM is assigned to it

VNet SKU

  • Basic
  • Static or dynamic IP address
  • NSG can be used to restrict traffic via public IP
  • No support for Availability Zones
  • Standard
  • Static IP
  • NSG need to be used to restrict traffic
  • Zone redundant by default

Network Peering

  • Communication between VMs in different VNets under private IP address via the backbone network
  • Azure supports connecting two virtual networks located in the same region or networks located across regions.

Network Peering

  • Additionally, the Virtual Network Peering can allow gateway transit to allow secondary VPN connections to be shared among all the vnets

  • The virtual networks can't have overlapping CIDR blocks.

  • E.g., 10.0.0.0/16 and 10.1.0.0/16 is ok. They don't overlap

  • E.g., 10.0.1.0/16 and 10.0.2.0/16 is not ok. Conflict

  • To create a peering, go to Peering tab and select the network to connect to

  • This will create 2 peering connections, to the remote VNet and from the remove VNet

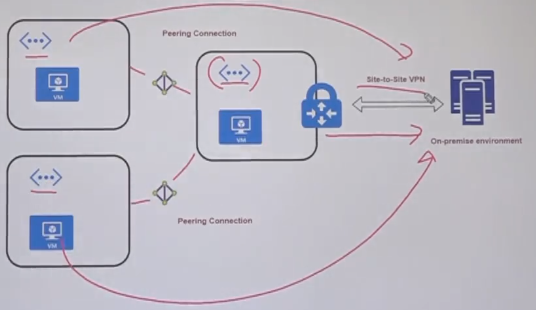

Gateway Transit

  • Allow the connections of a single VNet to be shared with peer connections
  • The remote VNet serves as a gateway to the other networks
  • Also known as hub and spoke model

Gateway Transit
