Virtual Network Gateway

• A gateway subnet can only be associated with VNets in the same region

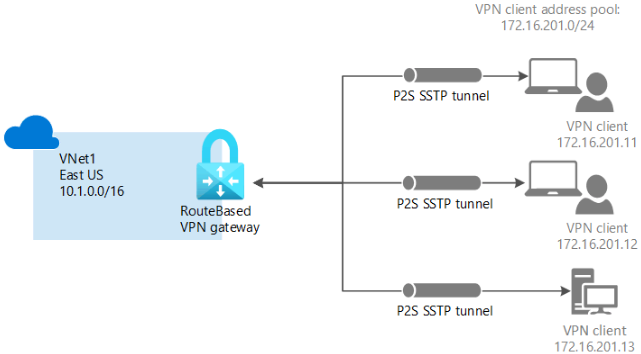

Point to Site VPN Connection

• A Point-to-Site VPN connection is used to establish a secure connection (via private IP) between multiple client machines and an Azure virtual network via the Internet.
• The subnet need to have a gateway subnet that contains a subnet of the VNet address space
• The gateway subnet can be created under the Subnet tab in VNet resource. Usually it is in the form 10.0.0.0/27
• With the gateway subnet in place, the virtual network gateway resource can be created

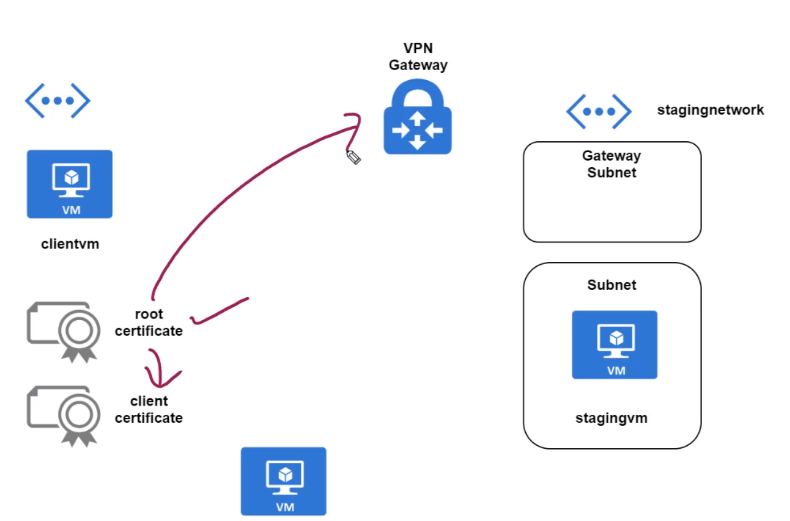

Certificates

• The host machine must generate the root certificate (selfsigned)
• The root certificate must be exported and installed in the VNet gateway
• The host machine must have a client certificate (signed by the root certificate)
• All the machines that want to connect to the VNet gateway must have the client certificate
• The host machine must install the client gateway software to order to connect to the VPN

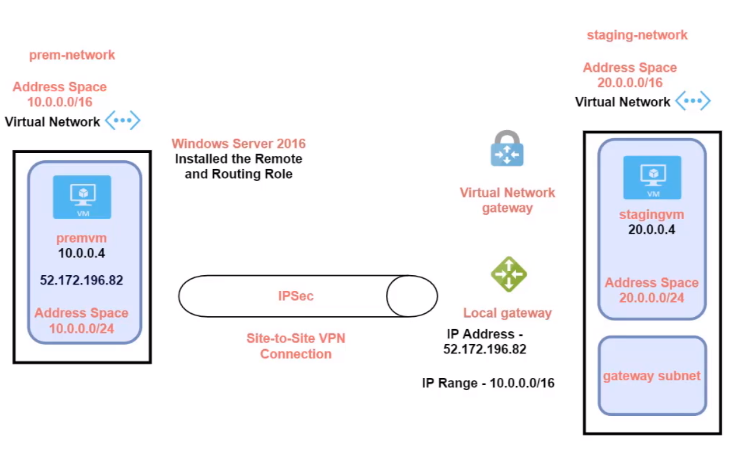

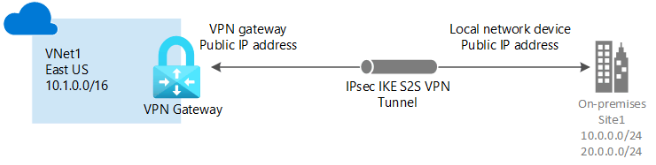

Site to Site VPN Connection

• A Site-to-Site VPN connection is used to establish a secure connection between an on-premise network and an Azure network via the Internet.
• When you want to connect a entire on-premise datacenter onto Azure VNet
• In comparison with Point-To-Site, Site-To-Site needs additionally a local network gateway, which is a representation of the on-premise environment

• You need to have a gateway subnet defined in your VNet for the VPN connection.
• The local network gateway needs to be the address range of the on-premise network.

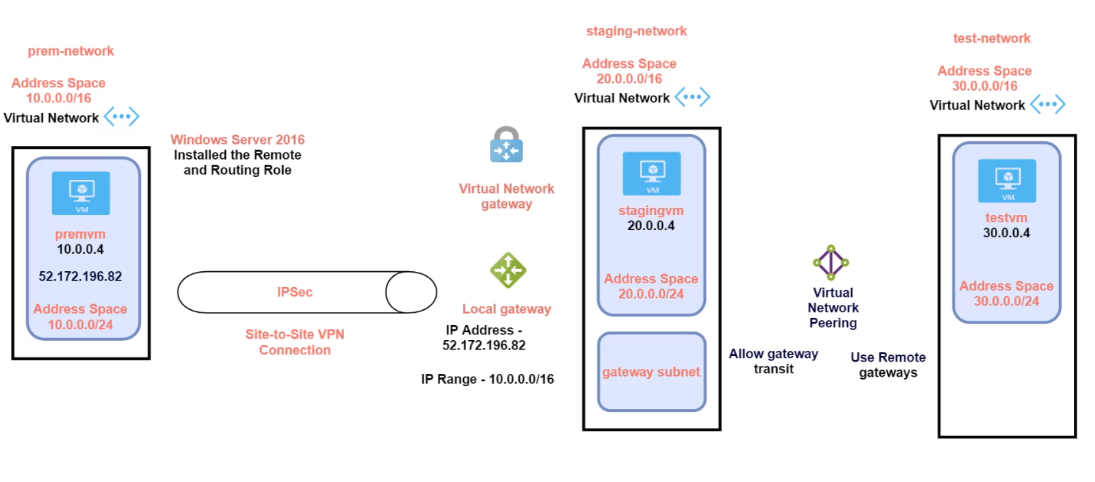

Gateway Transit

• VM-A: On-premise, VM-B: Azure VM, VM-C: Additional Azure VM

• To allow gateway transit, it must be enabled in the VNet config (of the VM that will act as a hub)

• VM-B must have peering connection with VM-C
• VM-B must have gateway transit allowed in peering config
• VM-C must enable use remote gateways
• VM-A must have static route configured

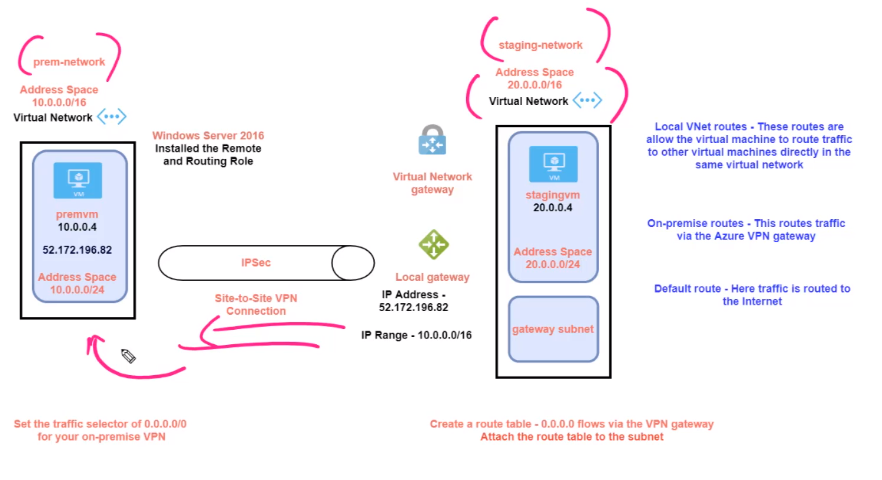

Forced Tunneling

• Force a connection to pass through a network first before reaching the Internet
• For security and compliance purposes
• A route table must be created and attach it to the VM subnet
