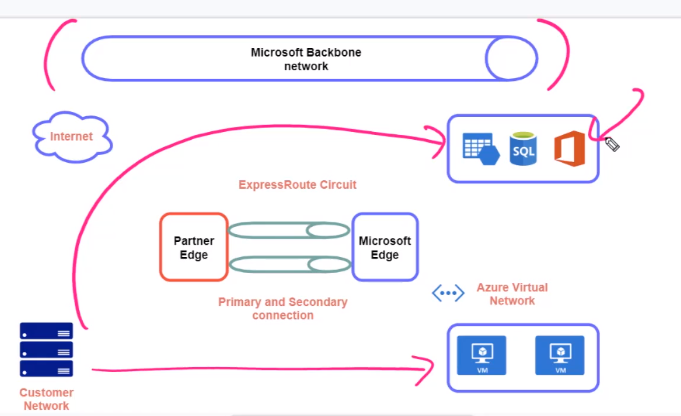

Express Route

• Connect on-premise server to azure network with a dedicated link
• It's a high speed alternative to site to site VPN connection
• ExpressRoute does not use Internet, instead uses a ExpressRoute Circuit

• ExpressRoute port types

• ExpressRoute Direct: 100Gbps

• Connectivity Provider: 50Mbps or 100Mbps. E.g., vodafone, at&t, oracle, etc

• Billing methods

• Unlimited data: monthly fee
• Metered data: inbound free, outbound based on GB
• Premium Add-on: can connect to resources across other regions

Peerings

• Azure private: Requires a VNet Gateway in Azure (choose option ExpressRoute)
• Azure public
• Microsoft

Client requirements

• Customer Network
• Private IP addresses (10.0.1.0/24)
• Public IP addresses (65.100.191.240/30)
• ASN - Autonomous System Number (38744)
