Azure Event Grid System Topic

• Listen to events emitted by Azure resources or your own application

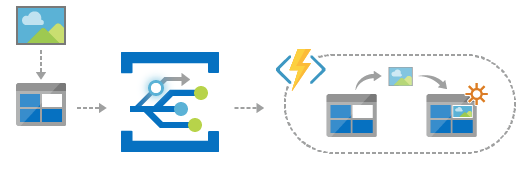

• Example: event emitted by a storage account is sent to Event Grid System Topic and from there it's forwarded to the handler

Events

• Resources have a Events tab. There you can configure support for sending events to Event Grid System Topic

• Subscription

• Listen for events emitted by the resource (event source)
• Topic
• The Event Grid System Topic to where to send the events.
• In the Event Grid System Topic itself there will be an identifier for the topics of each resource
• The types of events to be pushed to the topic can be filtered. E.g., blob created, blob deleted
• Handler
• To where to send the events that arrived in the topic
• Event Grid actively sends the event to the handler endpoint (the handler itself does not perform pooling)
• E.g, Azure Function, Webhook, Storage Queue

Schema

• The data part of the event has its own properties depending on the event schema

• Event Grid Schema

[
  {
    "topic": "string",
    "subject": "string",
    "id": "string",
    "eventType": "string",
    "evenTime": "string",
    "data": {
      object-unique-to-each-publisher
    },
    "dataVersion": "string",
    "metadataVersion": "string",
  }
]

• Cloud Event Schema v1.0
• Custom Input Schema

Filters

• Event Types

• Filter based on the type of events

• BlobCreated, BlobDeleted, etc

• Subject Filters

• Match with the subject of the event

• Example of subject: /blobServices/default/containers/data/blobs/img.jpg
• Filter: Subject ends with .jpg

• Filter: Subject beings with /blobServices/default/containers/data

• Advanced Filters

• Based on other properties of the event (id, topic, subject, eventtype, dataversion, etc)

• E.g., subject -> string is in -> /subscriptions/...

Additional Features

• Retry Policy: how many times event deliver to the handler will be retried. Also specify a TTL of the event
• Dead Lettering: store events that could not be delivered in a storage account
• Subscription Expiration time: delete the subscription automatically after some time
• Batching: delays the send of events to increase throughput

Configuring Webhook endpoint handler

• Normally you use a Event Grid Trigger to configure the function app

• But you can also use a normal HTTP Trigger webhook

• First Event Grid will perform a handshake with your application.

• It will send a validation code and a validation url onto your application

• Then your application should send the code back to the url
• This helps event grid to know that the application is you

• This handshake is done automatically to the other forms of endpoint (storage queue, function apps, etc). You must do it manually for your own api

• Requires Nuget package

public static class GetEvents
{
  [FunctionName("GetEvent")] // /api/GetEvent
  public static async Task<IActionResult> Run(
    [HttpTrigger(AuthorizationLevel.Function, "get", "post", Route = null)] HttpRequest req,
    ILogger log
  )
  {
    // Get request body
    string body = new StreamReader(req.Body).ReadToEnd();
    log.LogInformation($"Received request body {body}");

    // Subscribe to Event Grid
    EventGridSubscriber subscriber = new EventGridSubscriber();
    EventGridEvent[] events = subscriber.DeserializeEventGridEvents(body); // Deserialize all events
    foreach(EventGridEvent event in events)
    {
      // If the event is actually an validation data
      if (event.Data is SubscriptionValidationEventData)
      {
        SubscriptionValidationEventData validationData = (SubscriptionValidationEventData) event.Data;
        log.LogInformation($"Validation code {validationData.ValidationCode}");
        log.LogInformation($"Validation URL {validationData.ValidationUrl}");
        SubscriptionValidationResponse response = new SubscriptionValidationResponse()
        {
          ValidationResponse = validationData.ValidationCode
        };
        return new OkObjectResult(response); // Respond with the code itself
      }
    }
    return new OkObjectResult(string.Empty); // if no validation data is found, return empty
  }
}

Custom Event Grid Topics

• When creating an Subscription to resources, the Topic Type is set automatically according to the type of the resource (E.g., Storage Account) and saved as a Event Grid System Topic
• But you can also set up your own Custom Topic Type, for that, it will be saved as a Event Grid Topic
• This way, you can set your own Custom Source! (not from azure resources)

• Your custom topic will have a custom endpoint https://mytopic.eastus2-1.eventgrid.azure.net/api/events

• The custom topic will have also a key that will be used by the events source in order to publish events in the event grid

• Create a events source. Requires Azure.Messaging.EventGrid

class Program
{
  private static Uri topic_endpoint;
  private static AzureKeyCredential topic_accesskey;

  static void Main(string[] args)
  {
    topicEndpoint = new Uri("https://mytopic.eastus2-1.eventgrid.azure.net/api/events");
    topicAccessKey = new AzureKeyCredential("access-key");

    EventGridPublisherClient client = new EventGridPublisherClient(topicEndpoint, topicAccessKey);

    Order order = new Order()
    {
      OrderID = "O1",
      UnitPrice=9.99m,
      Quantity=100
    };

    List<EventGridEvent> eventsList = new List<EventGridEvent>()
    {
      // Create the event object
      new EventGridEvent(
        "Placing new order",
        "app.neworder",
        "1.0",
        JsonSerializer.Serialize(order) // data
      )
    };

    client.SendEvents(eventsList);
    Console.WriteLine("Sending Event");
  }
}
