Transformer

  • It's a kind of neutral network (machine learning model) that is used as technique/process to Foundation Models
  • Originally invented by Google 2017 for the google translate
  • Examples
  • Text-to-Text
    • Text generators
    • Next word prediction
  • Voice-to-Text
    • Transcripts
  • Text-to-Voice
    • Voice generators
  • Text-to-Image
    • Image generators
    • Stable Diffusion, Dall-E, Midjourney

Steps

Tokenization

  • Break down of the text (or the prompt) into small pieces called tokens
  • Tokens can be a word, a chunk of a sound, patches of an image
  • Each tokens is associated with a vector (or a tensor) that encodes the meaning of the token
  • https://platform.openai.com/tokenizer

Embedding Tensor

  • Embedding a word: It's be process of encoding an input (text, image, audio) into a vector (array of numerical values) with multiple dimensions (100s)
  • This process is performed by an embeddings model
  • All the embeddings are stored in a vector database

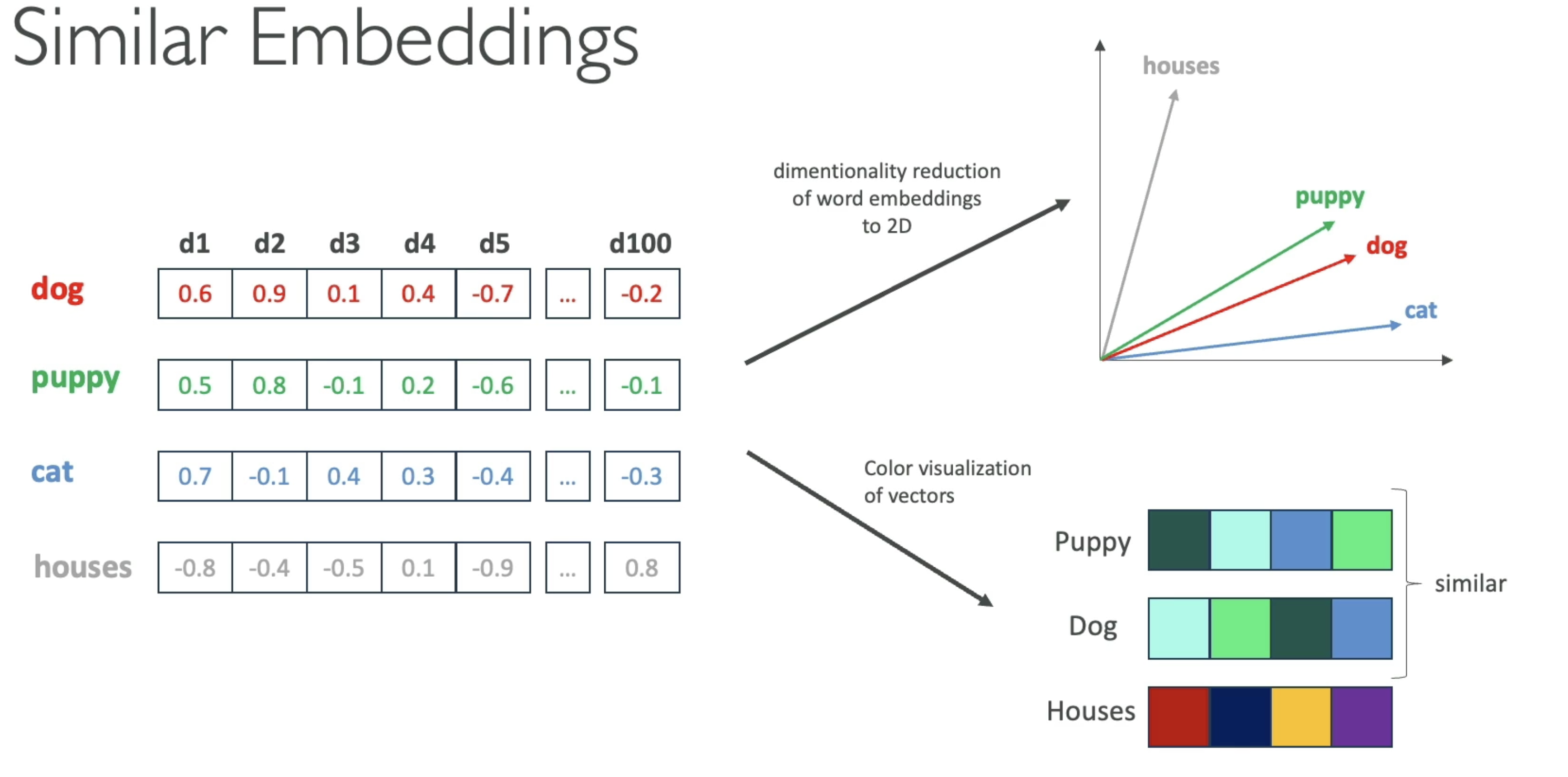

  • Data (e.g., words) that have a semantic relationship have similar embeddings
  • It's hard to visualize multiple dimensions, so sometimes dimensionality reduction is applied to the vector to visualize it in 2D or 3D

Embeddings

  • $W_E$ is the initial tensor that will be refined until the result is found
  • For word prediction models, the embedding tensor is composed of vectors represented every single possible word
  • This embedding tensor is multiplied by each vector to produce the first layer

Attention

  • The vectors pass through an operation called Attention block in which the vectors exchange information with each other in order to adjust its values/weights.
  • E.g., words that tend to appear together side-by-side, words with different meaning depending on the context

Multilayer perceptron (Feedforward layer)

  • In this phase the vectors don't talk to each other
  • The objetive is to fine tune the meaning of the vector (it's value)
  • The values are adjusted according to a series of questions that are asked for each vector
  • E.g., is it english? is it a noun? does it refer to a person?
  • This operation can be parallelized on GPUs!

\<Repeat>

  • Steps attention and multilayer perceptron are repeated multiple times
  • The final result is a last vector that represents the probability distribution of the next possible token
  • The whole process can be repeated from the start including the new token and with that a complete goal can be generated (a sentence, an image, etc)
