Istio architecture

• Istio is a Service Mesh
• A mesh refers to the network of interconnected service proxies (sidecars) and handle the communication between services
• It's a layer of proxies (envoy, for example) that intercept, monitor, secure and control communication between those services
• It uses a proxy (Envoy Proxy) to intercept all the network traffic to services

Challenges of Microservice Architecture (Without Istio)

• Kubernetes
• The most successful framework for building distributed architectures
• Orchestration framework
• K8S alone is not good at the connection between the pods (with service concepts)

• K8S alone doesn't give visibility of control over the connections

• For each microservice the following aspects must be incorporated

• Business Logic
• Communication configurations
• Security logic
• Retry logic

• Metrics & Tracing logic (telemetry)

• This adds complexity to the services instead of keeping them simple and lightweight

• The solution? Service Mesh! A sidecar proxy keep all the non-business logic

Istio Service Mesh

• A service mesh is a layer of software and sits underneath the pods
• Service Mesh is the network layer that consists of the Control plane + Proxies
• All the networking is routed through the service mesh software
• Telemetry functions (Like Prometheus and Grafana). Tracing. Security. Traffic management
• A Control Plane automatically inject a sidecar proxy to each POD

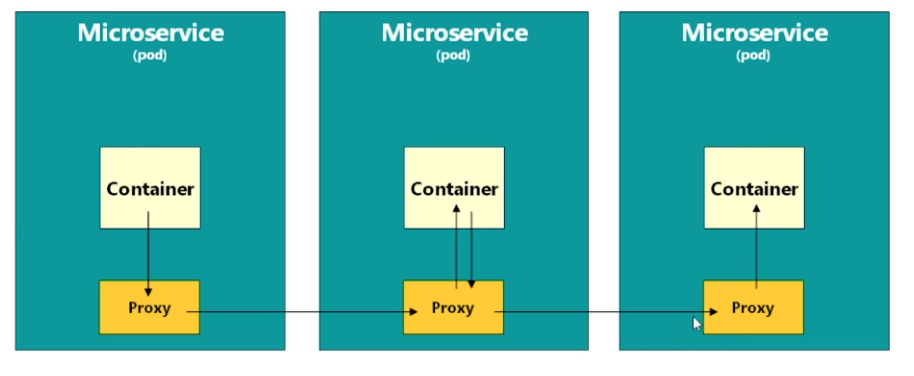

• The MS now talk to each other through those proxies

Data plane

• Data plane is composed by intelligent proxies (envoy)
• Data plane is managed by the control plane

• Envoy, sidecar, proxy in Istio means the same!

• Istio creates a proxy container inside of each pod. The proxy would be a ClusterIP in convention k8s networking

• Proxies are collectively called the Data Plane in Istio

• Everything else is called Control Plane: telemetry, pilot, tracing, etc

• sidecar mode: an envoy proxy for each pod in the cluster

• ambient mode: uses a single per-node L4 proxy

Control Plane

• The Control Plane manages and configures the proxies in the data plane
• The control plane is the Istio Daemon (istiod): Manage and inject envoy proxies

• As of istio v1.5, multiple components (Galley, citadel, pilot, mixer) were condensed into a single component istiod

• Galley: Reads the k8s format and transform into the istio format

• Pilot: Reads internal istio format and transform into envoy format (to be sent to proxies)
• Citadel:Manage TLS certificates! Enable TLS/SSL across the entire cluster

• Mixer: Implements policy checks (policy pod) and telemetry (telemetry pod)

• Istio ingress gateway and egress gateway are also part of the control plane

Other components

• Grafana: Frontend interface for telemetry
• Jaeger: Tracing
• Kiali: Frontend interface for telemetry
• Prometheus: Scrape metrics to be presented in a good form
