Certificates

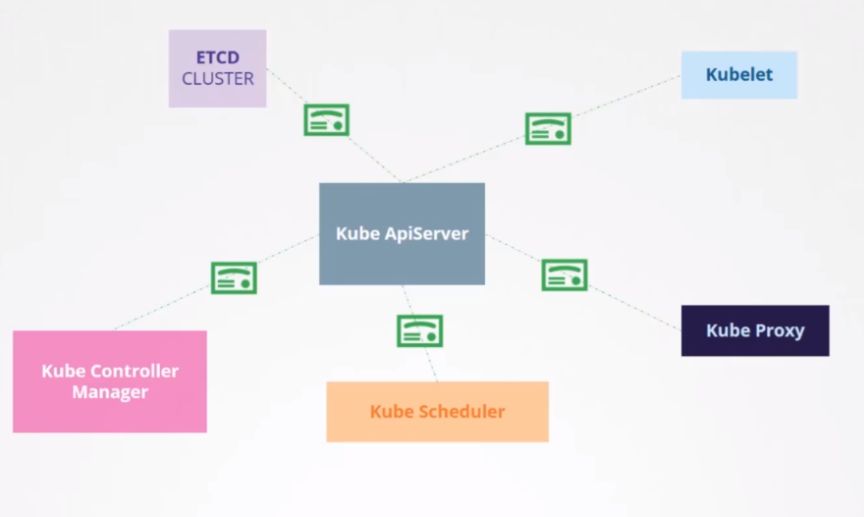

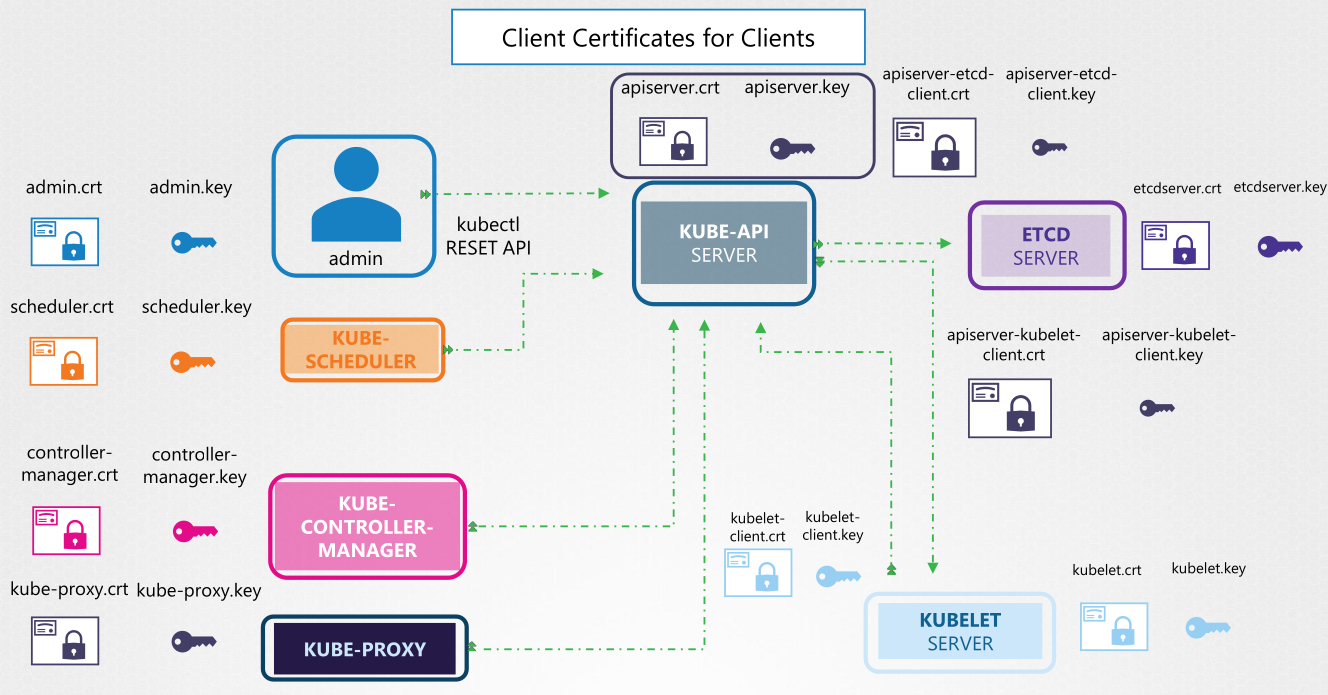

• All the communication between the Kubernetes components are TLS encrypted

• For encryption, certificates are necessary

Certificate Properties

• CN: Common Name. Name of the component. E.g., system:node:node01
• O: Organization. Specify the group. E.g, SYSTEM:NODES

Certificate Path

• Path for manual installation: /var/lib/kubernetes/
• Path for kubeadm installation: /etc/kubernetes/pki/

Certificate API

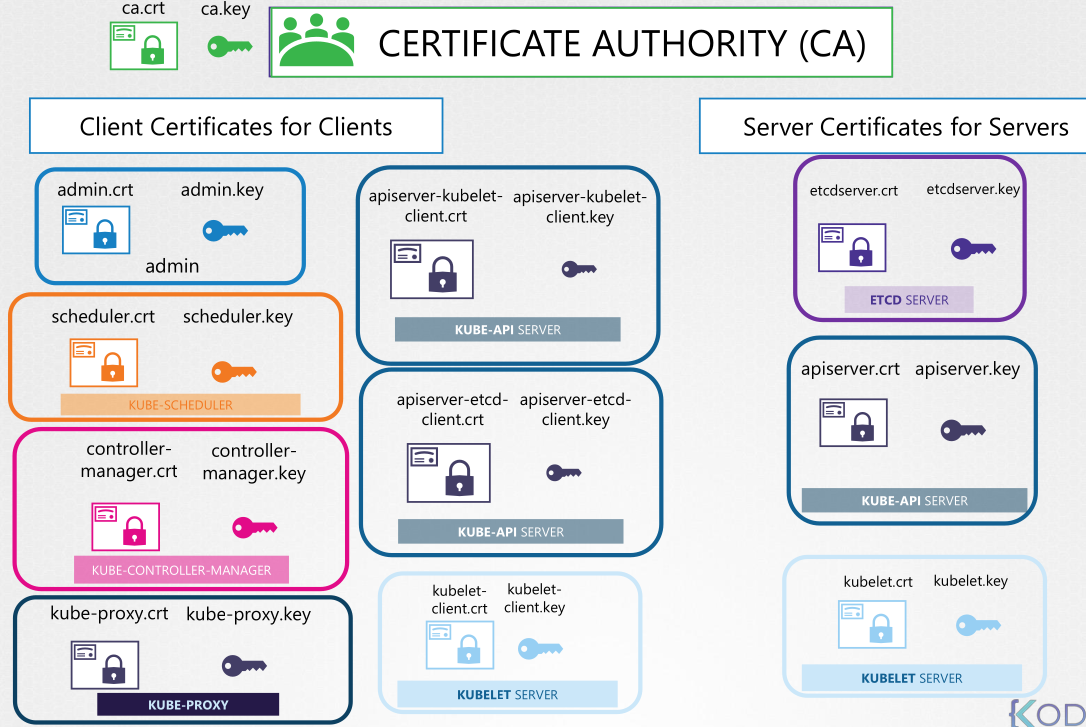

• The Certificate Authority (CA) and the CA Server is in the master nodes
• The CA private keys are stored in the master nodes

• The CA in kubernetes has the Common Name (CN) kubernetes

• The Certificate API is useful to avoid manually ssh into the master node to sign a certificate

• With the certificate API, the CSR is created as a CertificateSigningRequest resource and can be reviewed and approved via kubectl
• All the certificate operations are carried out by the Controller Manager
• It has the CSR-APPROVING and CSR-SIGNINGcontrollers

# generate private key
openssl genrsa -out "henry.key" "2048"

# create csr
openssl req \
  -new \
  -key "henry.key" \
  -subj "/CN=henry" \
  -out "henry.csr"

# encode csr
cat "henry.csr" | base64

apiVersion: certificates.k8s.io/v1beta1
kind: CertificateSigningRequest
metadata:
  name: henry
spec:
  groups:
    - system:authenticated
  usages:
    - digital signature
    - key encipherment
    - server auth
  request: LS0tLkasRIJDHKAHK81LS0tLkasRIJDHKAHK81...

kubectl get csr
kubectl certificate approve "henry"

• After approval, the CSR resource will have a new "certificate" field which can then be shared with the user
