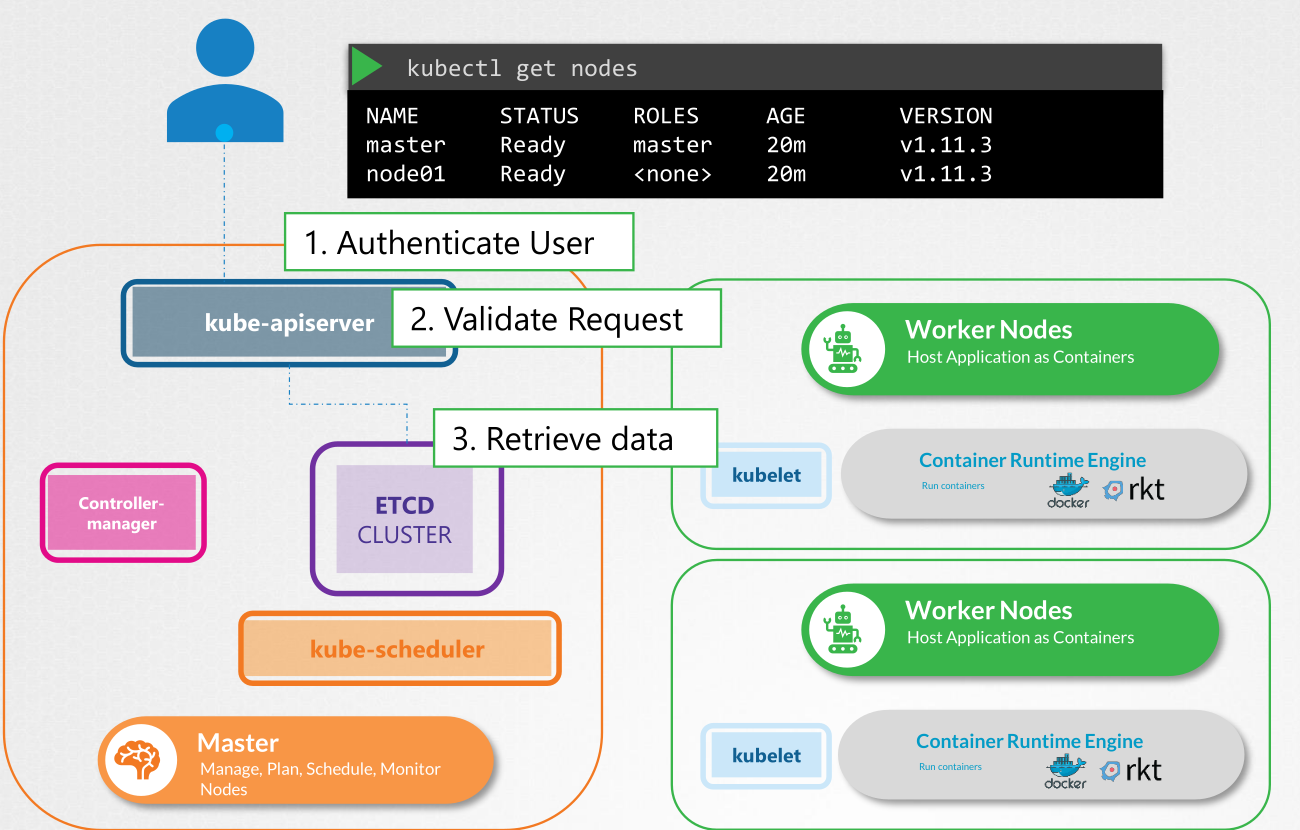

kube-apiserver

• It's the front end for the Kubernetes control plane and it exposes the Kubernetes API
• Orchestrate all operations within the cluster
• Can be accessed via kubectl or via rest

• Responsabilities
• Authenticate
• Validate Request
• Retrieve Data

• Update ETCD

• kube-apiserver is the only one component that interacts directly with ETCD. kube-scheduler and kubelet can update etcd but by means of the kube-apiserver

• Example: creating a pod

• user requests a new pod (kubectl or rest)
• kube-apiserver receives the request and consults etcd cluster to check if it already exists or has changed
• kube-apiserver then pass info to the kube-scheduler for a new pod creation
• kube-apiserver contacts the correct node kubelet to deploy the container
• kubelet responds to kube-apiserver with the current node status
• kube-apiserver updates etcd

The API

• Groups
• Core group
  • /api/v1/ns
  • /api/v1/po
  • /api/v1/svc
• Named group
  • /apis/apps
  • /apis/extensions
  • /apis/networking.k8s.io
  • /apis/storage.k8s.io
  • /apis/authentication.k8s.io
  • /apis/certificates.k8s.io
• Other groups
  • /version
  • /metrics
  • /healthz
  • /logs
• Resources
• /apis/apps/deployments
• /apis/apps/statefulsets
• ...
• Verbs
• List
• Get
• Create
• Delete
• Update
• Watch

kubectl

• Kubectl is the k8s command-line tool
• Kubectl manages the master in the k8s cluster
• Instructions https://kubernetes.io/docs/tasks/tools/install-kubectl/

# Download binary
curl -LO "https://storage.googleapis.com/kubernetes-release/release/$(curl -s https://storage.googleapis.com/kubernetes-release/release/stable.txt)/bin/linux/amd64/kubectl"

# Make it executable
chmod +x "./kubectl"

# Move it to PATH
sudo mv "./kubectl" "/usr/local/bin/kubectl"

# Check installation version
kubectl version

# Information about the cluster
kubectl cluster-info

rest

# Get all API groups
curl -X GET "https://10.10.10.10:6443/" --header "Authorization: Bearer my-jwt" --insecure

# Authentication
curl -X GET "/api/v1/pods" -u "user:pass" # basic auth
curl -X GET "/api/v1/pods" --header "Authorization: Bearer my-token" # token auth
curl -X GET "/api/v1/pods" --key "admin.key" --cert "admin.crt" --cacert "ca.crt" # certificate auth

# get pods
curl -X GET "/api/v1/pods" -u "user:pass"

# create pod
curl -X POST "/api/v1/namespaces/default/pods"
