Container Network Interface (CNI)

  • CNI allows multiple network solutions be compatible with Kubernetes
  • CNI is configured in the kubelet
  • CNI defines how the plugin should be developed and how container runtimes should invoke them
  • Plugins available
  • bridge
  • vlan
  • ipvlan
  • macvlan
  • windows
  • dhcp (3rd party)
  • host-local (3rd party)
  • Example: bridge plugin
  • Container runtime must
    • Create network namespace
    • Identify network the container must attach to
    • Invoke the Network Plugin (bridge) when container is added
    • Invoke the Network Plugin (bridge) when container is deleted
    • JSON format of the network configuration
  • Network Plugin must
    • Support command line arguments (add, del, check)
    • Support parameters container id, network ns, etc
    • Manage IP address assignment to pods
    • Return results in a specific format

Networking

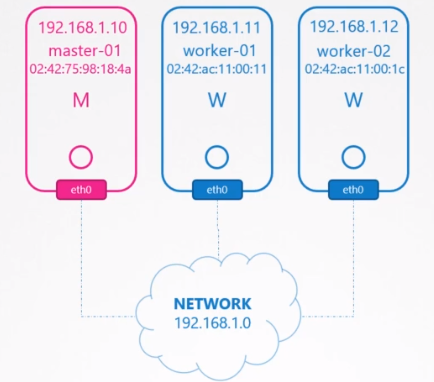

  • Each node must have at least one interface connected to the network
  • Each interface must have an address configured
  • Hosts must have a unique hostname and mac address

Kubernetes Networking

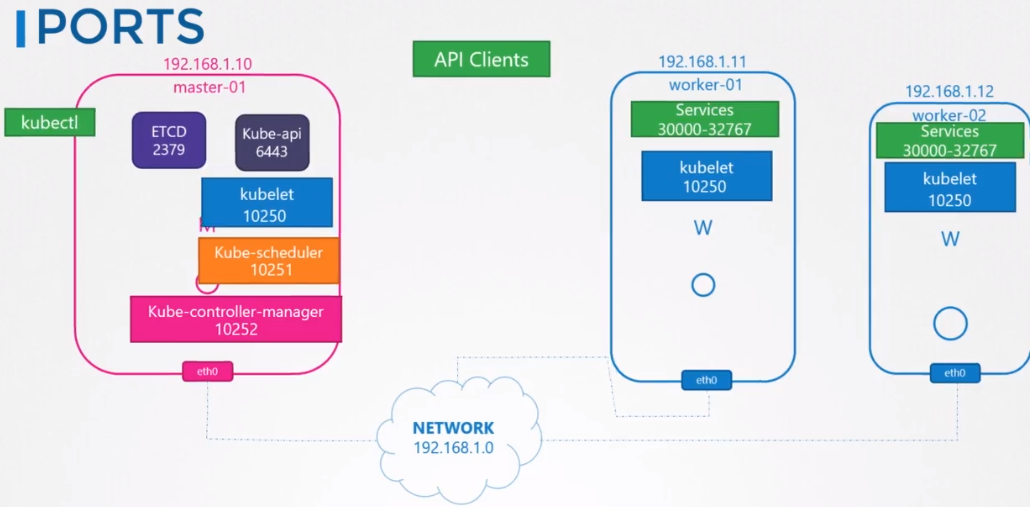

Ports

  • kube-apiserver: 6443
  • etcd: 2379 (2380 for etcd p2p connection)
  • kubelet: 10250
  • kube-scheduler: 10251

  • kube-controller-manager: 10252

  • Worker node expose services for external access on ports 30000-32767

Kubernetes ports

Networking Model (Between pods)

  • Every pod should have an IP Address
  • Every pod should be able to communicate with every pod in the same node
  • Every pod should be able to communicate with every pod on other nodes without NAT

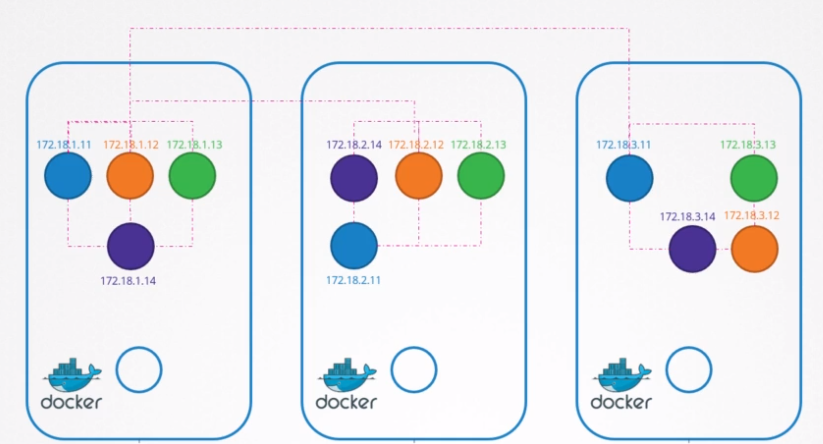

Pod networking

CNI

  • Whenever a container is manipulated, kubelet executes a script defined by the CNI config
  • --cni-conf-dir=/etc/cni/net.d: configuration so that kubelet knows which plugin to use
  • --cni-bin-dir=/etc/cni/bin: binary for all supported plugins
./net-script.sh add "container" "namespace"
  • ADD
  • Create veth pair
  • Attach veth pair
  • Assign IP address
  • Bring Up Interface

WeaveWorks

  • An weaver agent is deployed on the node and stores the topology of the entire setup
  • Agents communicate with each other to update its topology info
  • Weaver is deployed as DaemonSet
