Hexagonal Architecture

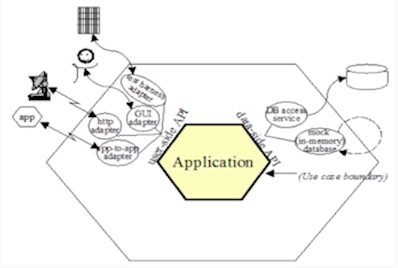

Hexagonal Architecture

  • The hexagon does not necessary has to contain 6 sides!: The sides in the hexagon is supposed to represent a port

Influences

  • Dr. Ivar Jacobson

  • Created UML and RUP

  • Created EIC (Entity-Interface-Control) -> ECB (Entity-Control-Boundary) in 1992

  • Dr. Alistair Cockburn

  • Signed the Agile Manifesto

  • Created the Hexagonal Architecture (Ports and Adapters) in 2005

  • Jeffrey Palermo

  • Microsoft MVP

  • Created Onion Architecture (2008) - very similar to Hexagonal!

  • Robert C. Martin (Uncle Bob)

  • Signed the Agile Manifesto

  • Created SOLID (2000)
  • Created Clean Code (2009)
  • Created Clean Architecture (2017)
    • Entity: core and business rules
    • Use cases: flow for treating the business rules

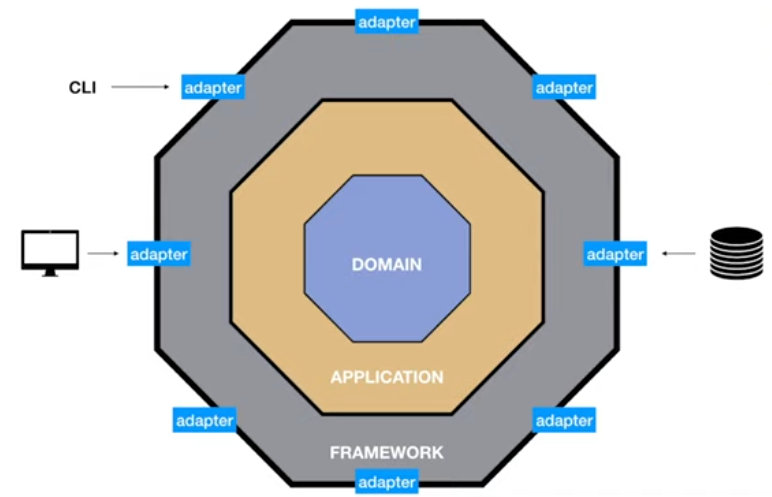

Parts

Hexagonal

  • Domain
  • It's the meaning of the software: the reason for it to exist
  • Business rules and entities!
  • DDD helps modelling the domain
  • Application
  • Contain the Use cases
  • The order to apply the business rules: the flow
  • Example: create the user, send email, confirm the email
  • Framework
  • Libraries that help the application to give a response to the request
  • It doesn't know what the application is about, it just facilities the delivering of requests
  • E.g., serialization, http, visualization

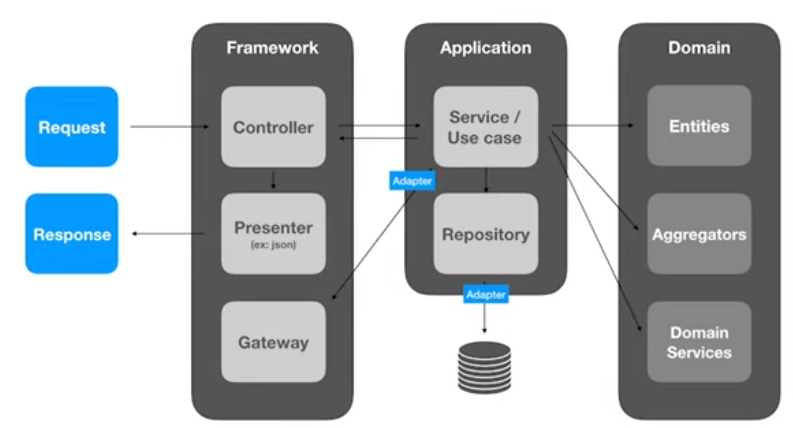

Flow of information

  • The flow of information is always into the system
  • Framework -> Application -> Domain (and never backwards)
  • To implement it, use the D from SOLID: Dependency Inversion Principle
  • Dependend of abstractions! Stable Interfaces! Not implementations
  • Dependency injection to import classes (e.g., from the Framework to the Domain) via an Interface

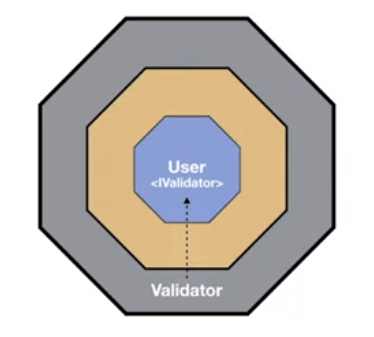

Dependency Injection Example

Tests

  • Domain
  • Unit tests
  • Application
  • Integration tests
  • Uses real domains
  • Uses mocks for external dependencies
  • Framework
  • Tests with the external world.
  • E.g., API REST requests, CLI requests, etc

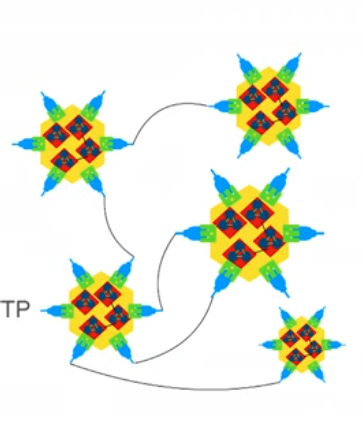

Diplomat Architecture

  • Diplomat Architecture: Ports & Adapters for Functional Architecture

  • Ports

  • Communication complexity: HTTP, gRPC, Kafka, etc
  • Adapters
  • Wire the port to the generic controllers
  • Controllers
  • Wire the generic request to the handler functions
  • Pure Functions
  • The business logic
  • Use standard libraries. Keep it simple!

Diplomat Architecture
